Making laser engraved and 3D printed business cards with the Business Card Generator

Difficulty: easy. Time: 10 minutes to set up, a few minutes per card to engrave or about 30 minutes to print. Best methods: laser engraved wood, metal or acrylic, or a multi colour 3D print.

A business card is small, so the details decide whether it works: text that stays readable at 3.5 by 2 inches, a QR code big enough to scan, and a back that lines up with the front. The generator checks those for you and warns you by name when a line is too long to stay readable.

The same design gives you two kinds of file. On a laser, the front and back are separate engrave layers beside one cut outline. On a 3D printer, the lettering is laid into the faces in a second and third colour, or raised from the front.

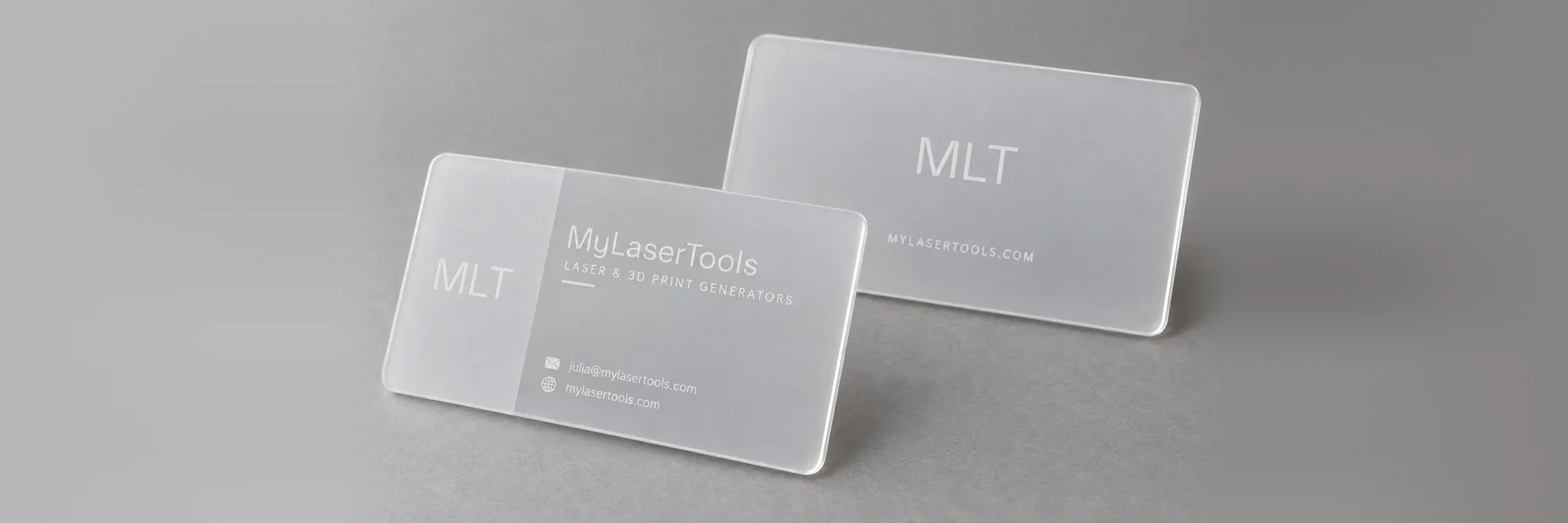

Two laser engraved business cards, the front with a side band, name and contact lines and the back with large initials and a website
Front and back come from the same file. The back outline is only a guide for lining the card up, it is not cut.
On this page (5)
  1. 1. Pick the machine and the layout
  2. 2. Type your details
  3. 3. Set the QR code
  4. Laser engraving
  5. 3D printing

What you need

For laser cards

  • 1.5 to 3 mm plywood, anodised aluminium business card blanks or 1.5 to 3 mm acrylic
  • Masking tape for wood, so smoke does not stain the face

For printed cards

  • A printer with a multi colour unit, or one that can pause for a filament swap
  • A 0.4 mm nozzle or smaller. Text under about 0.4 mm stroke width will not print cleanly
  • Optional: a round NFC sticker tag, 25 mm across

1. Pick the machine and the layout

Choose Laser or 3D printer under Make it on. Then pick a Layout. Each thumbnail is a real render of your own details, so you can compare them as you type. Lattice cuts a pattern of holes through part of the card; pick the pattern under Hole pattern from the same pattern library the Pattern Generator uses.

2. Type your details

  • Fill in Your details. Leave a line empty and it disappears from the card.
  • Size sets the card: US (3.5 x 2 in), EU (85 x 55 mm), Japan (91 x 55 mm) or Square.
  • Turn off Design the back too for a one-sided card.
  • Under Logo, show your Initials, upload My SVG or choose Nothing.
  • If a warning says a line is too long, shorten it or pick a narrower font under Fonts.

3. Set the QR code

Under QR code, Saves me makes phones offer to save your name, number, email and website as a contact. Website opens the website from your details, Link opens any address you type, and Off removes the code. Scan the preview with your phone before you cut or print.

Choose your build method

Laser engraving

Engrave both sides

  1. Download the SVG. The front sits on the left and the back on the right, each in its own colour layers.
  2. Engrave the front layers, then cut the card outline.
  3. Turn the card over and lay it on the Back alignment outline. Use your laser's frame or a low power trace on a piece of card to find it, but never cut it through your material.
  4. Engrave the back layers. The cut-outs on the back outline are already mirrored, so they line up with the card once it is flipped.
  5. For anodised aluminium blanks, skip the cut layer and engrave only.

3D printing

Print settings

  • Use the 3MF to keep card, text and accent colours apart. The STL is one solid card.
  • Flush lettering is laid into the face and feels smooth. Raised lettering stands 0.6 mm proud of the front.
  • Print with the front face down on a textured or smooth plate for the cleanest face.
  • With NFC tag pocket on, the generator tells you the height to pause at. Drop the tag in and resume.

Next steps and project ideas

  • Try the Inspirational Palette under the preview to see the card in wood, leather or mirror colours before you choose your material.
  • Use the Lattice layout on 3 mm plywood for a card people keep on their desk.
  • Open the design in the Design Editor to add your own artwork before you export.
