Star Box Generator

A star-shaped box with a lift-off lid. The wall bends around every point on living-hinge corners and locks into a slotted base and rim.

Settings

Units

Shape

Tip to tip across the star, measured on the middle of the wall.
mm
mm
Points
Inner depth
Lower values give slimmer, sharper points.
%

Corners

Tighter tips need thinner or more flexible material.
mm
mm

Using a 10mm tip radius and a 10mm inner corner radius.

Lid

Lift-off lid
A star lid with a plug underneath that drops into the rim opening.
Gap around the plug so the lid lifts off easily.
mm

Construction

mm
How far the base and the rim ring stick out past the wall.
mm
Set this to your laser bed so every wall strip fits. Longer walls split into several strips.
mm

2 wall strips, 512mm of wall in total.

Vector Export

3D Print Design

The STL and 3MF are ready to print: the box is one solid piece, with a solid star wall in place of the hinge strips, and the lid with its plug is a second piece.

3MF preserves richer print metadata when your slicer supports it.

Inspirational Palette
402mm × 449mm
(15.8in × 17.7in)

Examples

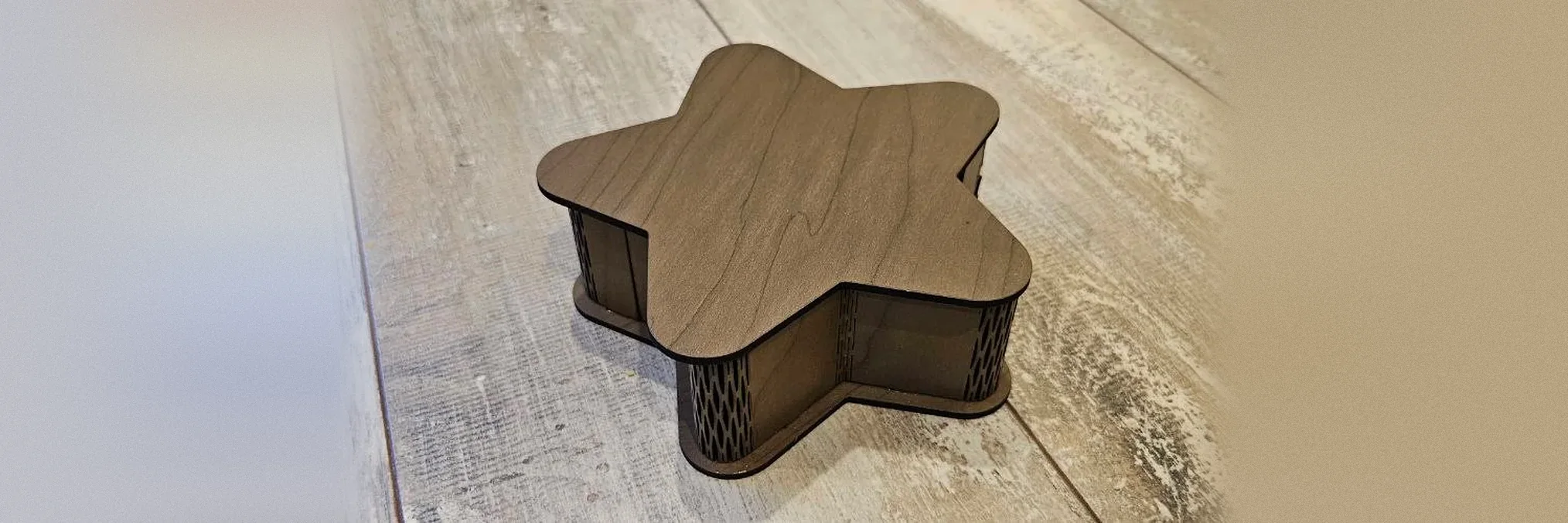

Cut from walnut plywood. The wall bends around each tip and inner corner on living hinge cuts, and its tabs lock into the base and the rim.

Star shaped walnut box cut on a laser, with a living hinge wall and a lift-off lid

Materials used:

Set the material thickness to match your sheet before cutting, since every tab and slot is sized from it.

How To Use

Frequently Asked Questions

Each corner is a living hinge: a band of short cuts that lets the sheet bend. The straight sides stay solid and carry tabs that lock into the base and the rim ring.

3 mm plywood or MDF bends well on the default corners. For thicker sheets, raise the tip and inner corner radius so the hinges do not have to bend as tightly.

Set the longest wall strip to your bed size. The wall then splits at the middle of a straight side, where tabs on both sides of the joint hold the strips in line.

Visit the MyLaserTools Learning Center for a step-by-step Star Box Generator guide, plus material tips and file-format help for laser cutting, CNC, and 3D printing. The guides walk you through every setting and how to prepare your files for your machine.

Open the Star Box Generator guide

About

This free star box generator makes a laser-cut star box from flat parts: a slotted star base, one or more wall strips with living-hinge corners, a slotted rim ring and an optional lift-off lid. The wall bends around every tip and inner corner, its tabs lock into the base and rim, and long walls split at the middle of a straight side so each strip fits your bed. Choose 4 to 10 points, round the corners to suit your material and export SVG for cutting or STL and 3MF for printing.
