Slide Box Generator

A box that opens by sliding: a lid that runs through the front wall on rails tabbed into the side walls, or a matchbox tray that slides out of a sleeve.

Settings

Units

Box

Style
The lid slides out through a slot in the front wall and cannot lift off.
mm
mm
Height below the lid.
mm
Thumb notch
A finger hole near the front of the lid for pulling it open.

Construction

mm
mm
Gap around the lid in its rails. Raise it if the lid sticks.
mm

Vector Export

3D Print Design

The STL and 3MF are ready to print: the box with its rails is one solid piece and the lid lies flat beside it. A matchbox prints as the tray and a sleeve standing on its end.

3MF preserves richer print metadata when your slicer supports it.

Inspirational Palette
310mm × 359mm
(12.2in × 14.1in)

Examples

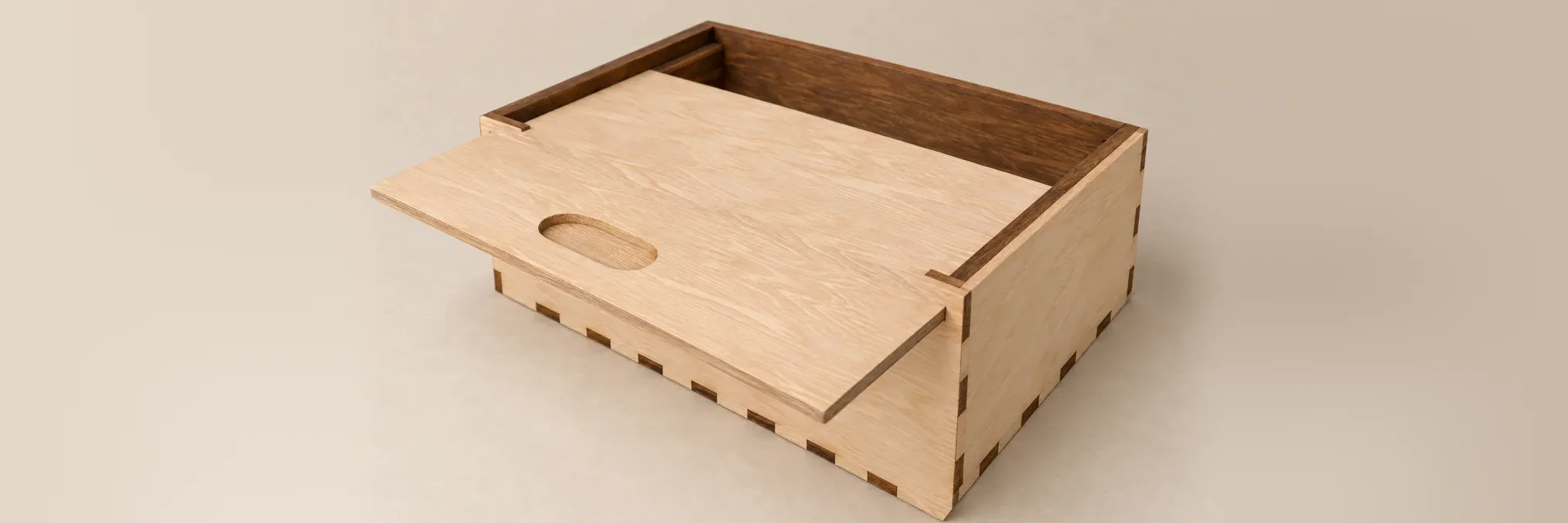

The maple lid enters through a slot in the front wall and runs between rails whose tabs lock into slots in the side walls, so it slides open but never lifts off.

Laser cut box with a sliding maple lid pulled partly open

Materials used:

Set the material thickness to match your sheet before cutting, since every tab and slot is sized from it.

How To Use

Frequently Asked Questions

A laser cannot cut a groove, so each side wall gets two rails: a lower one that carries the lid and an upper one that stops it from lifting. Their tabs lock into slots in the wall, so the channel holds its height without glue.

Raise the slide clearance by 0.05 mm at a time and check that the thickness setting matches your real sheet. Plywood often measures a little thicker than its label.

Card holders, pencil boxes, gift packaging and small parts storage, anywhere a tray that slides out of a sleeve is nicer than a lid.

Visit the MyLaserTools Learning Center for a step-by-step Slide Box Generator guide, plus material tips and file-format help for laser cutting, CNC, and 3D printing. The guides walk you through every setting and how to prepare your files for your machine.

Open the Slide Box Generator guide

About

This free slide box generator makes two kinds of sliding boxes from flat sheets. The sliding lid box has four walls of the same height, a slot in the front wall and two pairs of rails whose tabs lock into slots in the side walls, so the lid runs in a closed channel and cannot lift off. The matchbox is an open tray that slides inside a finger-jointed sleeve, with notches to push and pull it. Both are sized from your sheet thickness plus a clearance you control, and suit pencil boxes, card boxes, gift packaging and small parts storage.
