Paint Storage Rack Generator
A tiered rack that holds every paint bottle upright in its own hole, so your whole palette is a glance away.
Settings
Grid
Holes
Construction
Vector Export
3D Print Design
Every panel is exported as its own print-ready part, zipped together at the material thickness.
3MF preserves richer print metadata when your slicer supports it.
Generate a design to see the 2D preview
Generate a design to see the export preview
Examples

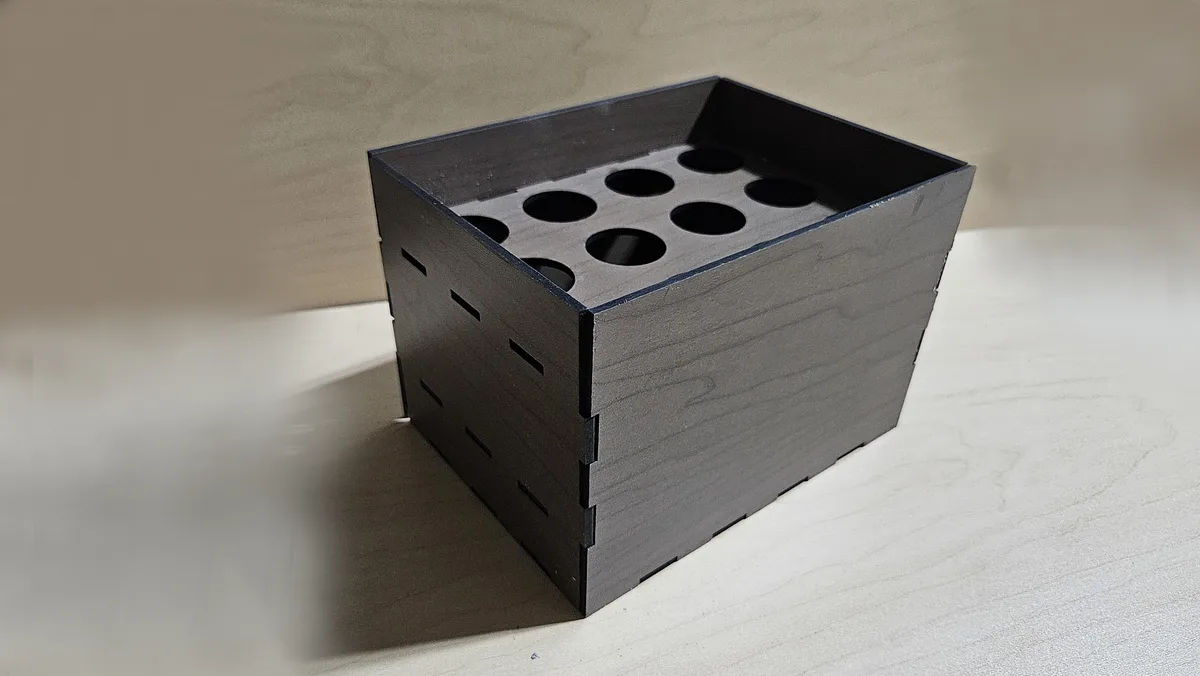

Laser cut in walnut plywood. The finger joints press together with no glue, and the drilled top shelf keeps paints, markers, and drill bits standing upright.
Material used:
Set the thickness slider to match your sheet before cutting, since every finger joint and shelf slot is derived from it. Size the hole diameter to your bottles, markers, or bits.
How To Use
Frequently Asked Questions
Yes. Set the shelves, hole size and layout you want, then download the SVG or the print-ready parts with no watermark and no export limits.
Set the hole diameter to match the widest part of your bottles or pots, leaving a small clearance so they drop in and out easily. Measure a real bottle rather than guessing, since ranges like Citadel, Vallejo and Army Painter all differ.
Set the thickness slider to your actual sheet thickness before exporting, because the tiered shelves slot into the sides and the joints are derived from it. A 0.2 mm error is the difference between a snug rack and a wobbly one.
Yes. A commercial license is included, so you can sell paint racks made with the tool on Etsy, at craft fairs, or anywhere else. Attribution is appreciated but not required.
Visit the MyLaserTools Learning Center for a step-by-step Paint Storage Rack Generator guide, plus material tips and file-format help for laser cutting, CNC, and 3D printing. The guides walk you through every setting and how to prepare your files for your machine.
Open the Paint Storage Rack Generator guideAbout
This free paint storage rack generator lays out a finger-jointed box with one or more stacked shelves, each drilled with a grid of round holes sized to your paint bottles and pots. The shelves slot into the walls with matching finger tabs, and every joint is derived from your material thickness so the rack press-fits together with minimal glue. Use it for miniature paints, ink bottles, craft pots, or any round container.
