Free Laser Cut Box Generator
Free custom finger-jointed box generator for laser cutting. Design custom boxes with precise dimensions and adjustable finger joints.
How To Use
Set your box dimensions (width, depth, height) and material thickness. Dimensions are internal measurements.
Adjust finger width and spacing to control the size and tightness of the joints. Larger values create looser-fitting joints, smaller values create tighter joints.
Fine-tune finger joint settings. Wider fingers (2-3× thickness) are stronger but fewer. Narrower fingers provide more contact points.
Download the SVG file and laser cut all 6 faces. The layout shows: Bottom in center with Left/Right on sides, then Front/Back and Top below.
Assembly: Start with the bottom face. Insert the front, back, left, and right sides into the bottom's finger cutouts. The sides interlock with each other at corners. Finally, press the top onto all four sides. No glue needed for a snug fit!
Pro Tip: Test your settings with a smaller box first. Each laser and material combination may need slightly different finger joint settings for the perfect fit.

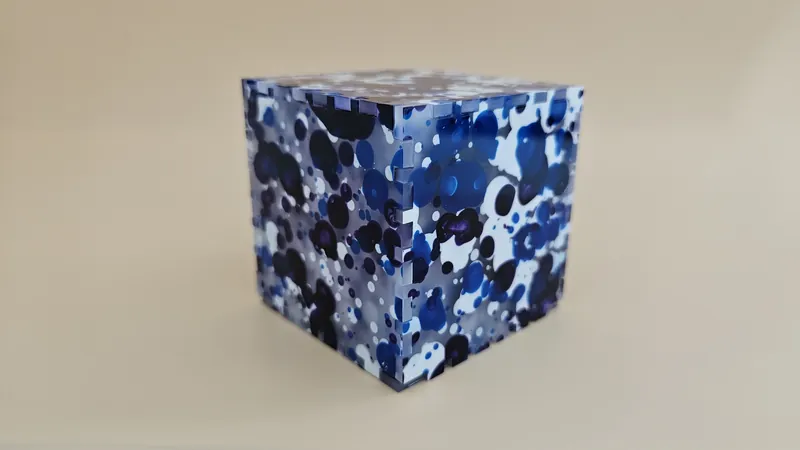

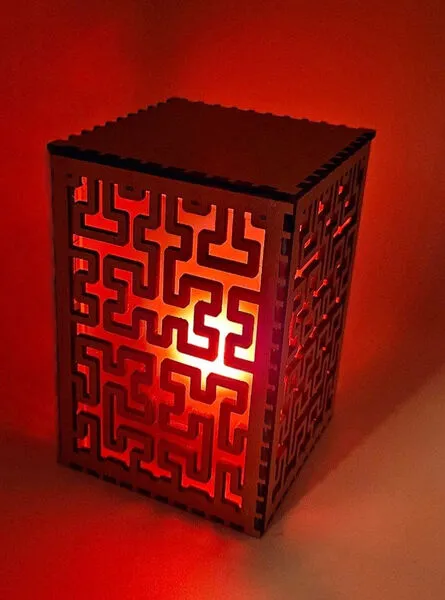

Examples
Create custom finger-jointed boxes with precise dimensions. Perfect for storage, gifts, and decorative projects.
Materials used:
Material Suggestions
Our SVG files work with various materials. For decorative boxes, try glitter acrylic for a stunning effect. You can also use laser-grade plywood for a natural look or solid color acrylic for vibrant, modern designs.
Frequently Asked Questions
Yes. The Box Generator is completely free with unlimited exports, no watermarks, and no account required. A commercial license is included.
Finger-jointed (box-joint) boxes with fully adjustable width, depth, height, material thickness, finger size, and lid options. Perfect for storage boxes, gift boxes, and enclosures.
Yes. You set the exact material thickness and a kerf (burn) correction value so the finger joints fit together tightly after the laser's cut width is accounted for.
It exports laser-ready SVG files that work with Glowforge, xTool, LightBurn, OMTech, Epilog, Trotec, and CNC routers via SVG import.
Yes. Every account tier may sell physical boxes made from these files. Reselling the cut files themselves requires a Supporter or Pro membership, and files you made as a member can still be resold after the membership ends. Any artwork or fonts you add remain subject to their own licenses.
Visit the MyLaserTools Learning Center for a step-by-step Box Generator guide, plus material tips and file-format help for laser cutting, CNC, and 3D printing. The guides walk you through every setting and how to prepare your files for your machine.
Open the Box Generator guideAbout
Our free box generator creates custom finger-jointed boxes perfect for laser cutting and CNC machining. It generates high-quality SVG files compatible with all laser cutters including Glowforge, xTool, Epilog Laser, and Trotec Laser. The tool creates all 6 faces with precise finger joints that fit together perfectly. Customize your internal dimensions (width, depth, height), material thickness, and finger joint settings. Perfect for storage boxes, gift boxes, display cases, and custom packaging. Works with laser-grade plywood, acrylic sheets, MDF, and other laser-compatible materials. Download your SVG and start creating custom boxes today!
