Bin Tray Generator
A parts tray divided into slanted, scoop-friendly bins, so every screw, bead, and bit gets its own spot.
Settings
Dimensions
Construction
Bins
Vector Export
3D Print Design
The STL prints in place as one welded piece. The 3MF is a zip of separate panels for flat printing or laser cutting.
3MF preserves richer print metadata when your slicer supports it.
Generate a design to see the 2D preview
Generate a design to see the export preview
Examples

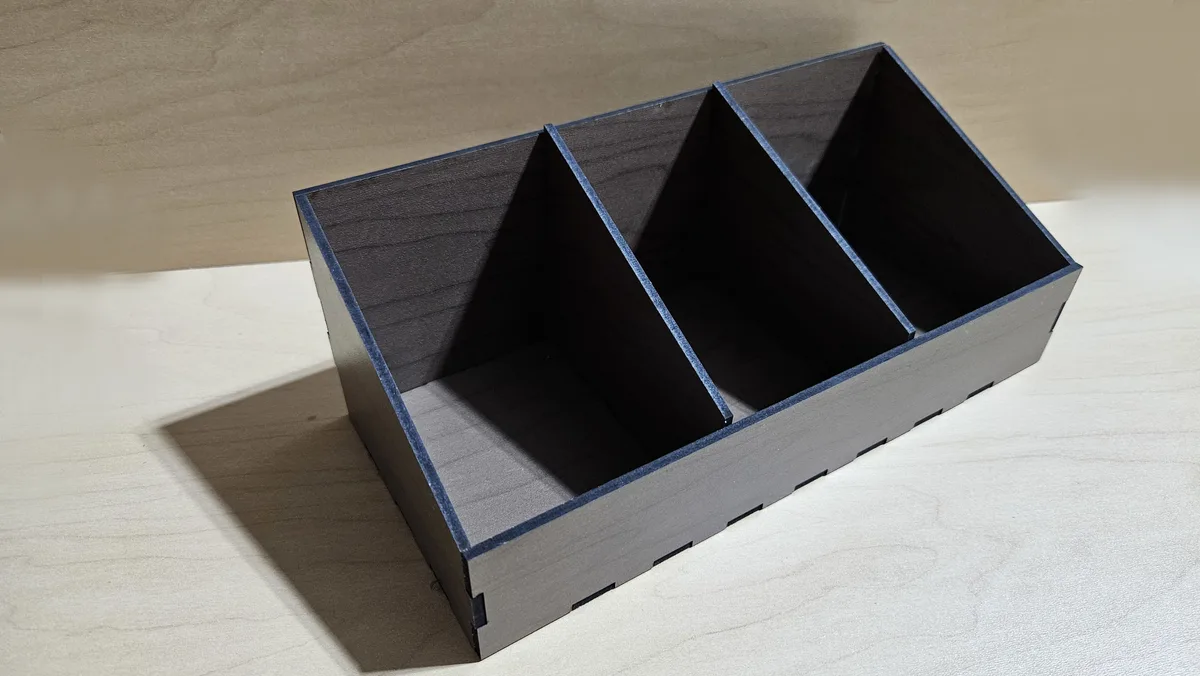

Laser cut in walnut plywood. The finger joints press together with no glue, and the sloped front keeps every bin easy to scoop from.
Material used:
Set the thickness slider to match your sheet before cutting, since every finger joint and divider slot is derived from it.
How To Use
Frequently Asked Questions
Yes. Set the number of bins, size and slant you want, then download the SVG or the print-ready parts with no watermark and no export limits.
Slanted dividers drop into slots cut in the floor, splitting the tray into side-by-side bins with an angled front so you can scoop parts out easily. Choose how many bins you want across the tray.
Set the thickness slider to your actual sheet thickness before exporting, because the floor slots and finger joints are all derived from it. Measure the sheet rather than trusting the label so everything presses together cleanly.
Yes. A commercial license is included, so you can sell bin trays made with the tool on Etsy, at craft fairs, or anywhere else. Attribution is appreciated but not required.
Visit the MyLaserTools Learning Center for a step-by-step Bin Tray Generator guide, plus material tips and file-format help for laser cutting, CNC, and 3D printing. The guides walk you through every setting and how to prepare your files for your machine.
Open the Bin Tray Generator guideAbout
This free bin tray generator lays out a finger-jointed parts tray divided into side-by-side slanted bins. The low, sloped front makes each bin easy to reach into, and the dividers slot into the floor so there is no glue needed inside. Great for hardware, beads, components, and craft supplies.
