UV Print & Laser Engraving Pencil Jig Generator
Free parametric fixture for pencils, drumsticks, chopsticks, knitting needles, and similar items. Laser cut, 3D print, or UV print ready.

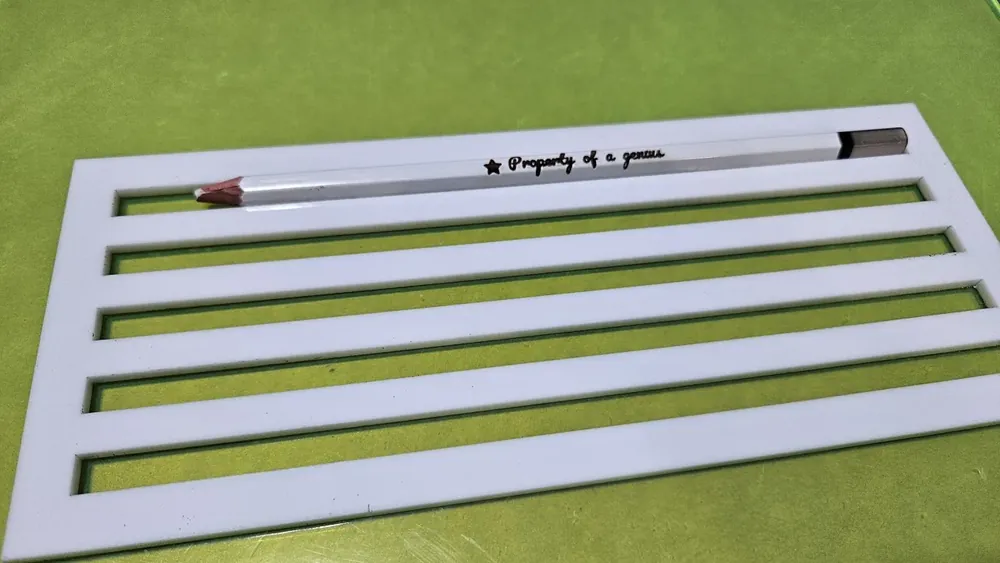

UV Print & Laser Engraving Jig Examples
Personalise pencils, drumsticks, chopsticks, and knitting needles in batches with a single fixture. The same jig works for UV printing, CO2 and diode laser engraving, fibre lasers, and rotary engravers, so you load the items once and reproduce identical placement across every piece.
Material used:
- Dual-Finish Pastel Acrylic Sheet (White) from YXE Creations, laser cut and UV printed.
How To Use
Pick Your Item
Tap a tab for pencils, drumsticks, chopsticks, or knitting needles. The jig works for both UV printing and laser engraving.
Set Dimensions and Count
Adjust the diameter and length to match your item, or stick with the preset. Choose Custom Count to set the exact number of slots, or Fill Sheet to fill a laser bed automatically.
Add Text and Symbols
Type one name per line, one per slot. Pick an alignment, add an optional symbol beside the text, and let auto-shrink handle long names. Choose Engrave & Print mode for filled text, or Score mode for single-line laser fonts.
Download & Run
Download the SVG (Cut, Slots Cut, and Engrave layers in one file) for laser cutting and engraving. For UV printing, download the 300 DPI PNG and load it into your UV printer software. Place items in the slots and run in a single pass.
Frequently Asked Questions
Yes. The Pencil Engraving Jig is 100% free with no limits, no watermarks, and no trial period. Generate and download as many files as you want, free forever.
Free cylinder jig for UV printing and laser engraving pencils, drumsticks, chopsticks, and knitting needles. Laser cut, 3D print, or UV print ready.. Adjust the settings, preview your design in real time, and download a ready-to-make file in seconds.
It exports clean SVG files for laser cutting, CNC, and vinyl, plus STL and multi-colour 3MF files for 3D printing. Everything is generated instantly in your browser.
Laser cutters and engravers including Glowforge, xTool, LightBurn, OMTech, Epilog, Trotec, Thunder Laser, and any machine that accepts SVG or vector files. CNC routers and mills via SVG import in tools like Vectric, Carbide Create, Easel, and Fusion 360. 3D printers via slicers such as Bambu Studio, PrusaSlicer, OrcaSlicer, and Cura, with 3MF files carrying colour data for multi-colour prints. Any home or office printer for print-and-make projects.
You can use wood, acrylic, leather, MDF, plywood, cardboard, and paper for laser cutting and CNC, and PLA, PETG, ABS, TPU, and any filament your printer supports for 3D printing. The generated files are standard formats compatible with any material your machine can handle.
No account or sign-up is required for the Pencil Engraving Jig. It runs entirely in your browser, your designs never leave your device, and there is nothing to install.
Yes. A commercial license is included, so you can sell products made with the Pencil Engraving Jig on Etsy, Amazon Handmade, Shopify, at craft fairs, or anywhere else. Attribution is appreciated but not required.
Visit the MyLaserTools Learning Center for a step-by-step Pencil Engraving Jig guide, plus material tips and file-format help for laser cutting, CNC, and 3D printing. The guides walk you through every setting and how to prepare your files for your machine.
Open the Pencil Engraving Jig guideAbout
Our free cylinder jig generator creates precision fixtures for batch UV printing and laser engraving on pencils, drumsticks, chopsticks, and knitting needles. Each slot holds one item at a consistent position so every print or engrave lands in the same spot. Pick an item preset to auto-fill diameter and length, or enter your own dimensions for any item up to 30 mm wide and 500 mm long. Choose Fill Sheet to fill a standard laser bed automatically, or use Custom Count to pick an exact number. Use Engrave & Print mode for filled text that works with both lasers and UV printers, or Score mode for single-line fonts on lasers. Long names auto-shrink to fit the available space. Download the Jig SVG to cut the holder, the Engrave SVGfor laser engraving, or the UV Print PNG at 300 DPI for direct-to-cylinder UV printing. All files share the same coordinate system so they overlay perfectly in Lightburn, xTool Creative Space, LightBurn DSP, and most UV printer software such as Roland VersaWorks and Mimaki RasterLink. Compatible with STL and 3MF for 3D printing.
