Building an A-frame desk sign

Difficulty: easy. Time: 10 minutes design, 20 minutes making. Best method: laser-cut plywood or acrylic.

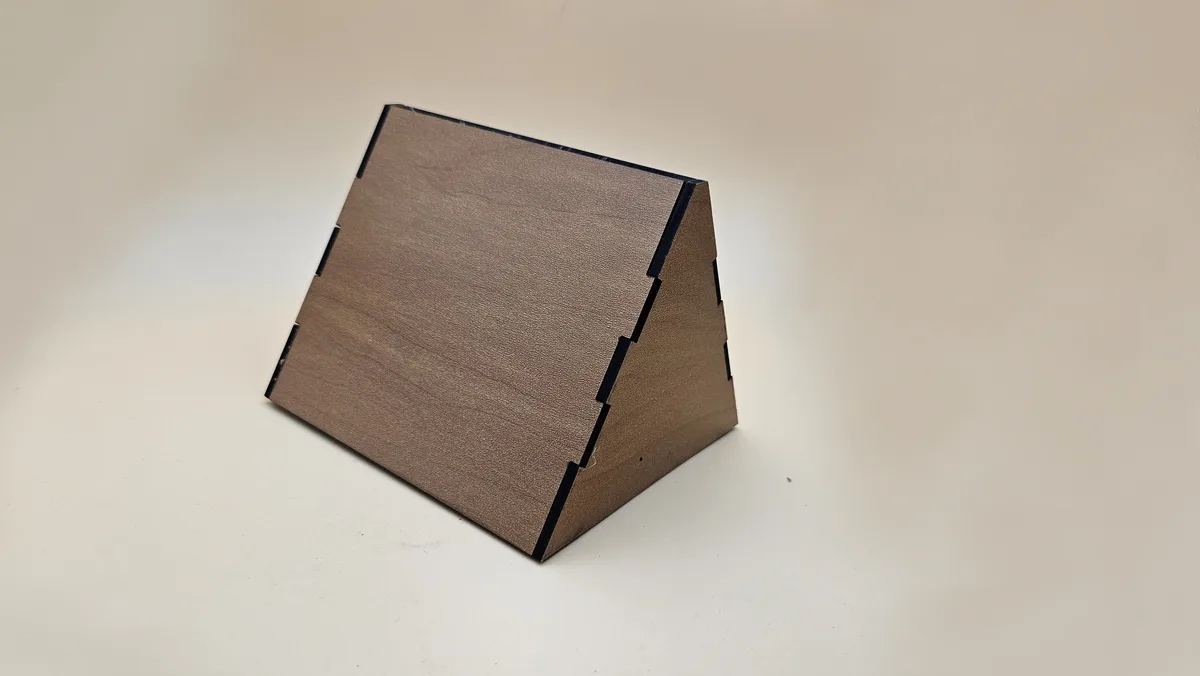

A desk sign is a quick, satisfying laser project: two triangular ends and two leaning faces that lock together into a self-standing tent. This generator cuts angled slots into the end triangles so the faces slide straight through and press-fit at the apex, and it drops a scored guide box on the front face so you know exactly where your text will land. The Assembled 3D tab shows the tent standing so you can judge the lean before you cut.

Open the Desk Sign Generator

What You'll Need

Laser cutting: 3 to 6 mm plywood, MDF, or acrylic. Measure the actual sheet thickness with calipers, it is rarely exactly what the label says.
3D printing: any rigid filament. 4 to 6 mm panels give stronger slots than laser-thin ones.
Finishing: a little sanding on the slot edges, plus optional glue at the apex if you want it permanent

Step 1 - Sign size

Width is how wide the faces are across the front. Face height is the slanted length of each leaning face. Foot spread sets how far apart the feet sit on the desk, which controls the lean angle: a wider spread makes a lower, more stable tent. Thickness must match your sheet, because every slot is derived from it.

Step 2 - Add your text

No text is baked into the file. The front face carries a scored guide box showing the safe engraving area. Open the exported SVG in the editor to add an engraved name or message inside that box, then remove the guide layer before cutting if you do not want it to show.

Step 3 - Check the assembly

Switch to the Assembled 3D tab and orbit the sign to confirm the tent leans the way you want. The Export Preview tab shows the flat sheet with each panel in its own colour and the slots ready to cut.

Choose Your Build Method

Before you cut

Measure your sheet with calipers and set Thickness to what you measured, not what the label says.
Cut the slots and any engraving before the outlines where your software lets you choose, so panels do not shift once they are free.
Run a fit test first: cut one end triangle and one face, slide them together, and only commit the rest once the face seats with light hand pressure.

Assemble

Slide each face through the matching slot in both end triangles so the two faces meet at the apex.
Stand the tent on a flat surface and check it sits without rocking; sand a foot lightly if it does.
Add a drop of glue at the apex or in the slots only if you want the sign to be permanent.

Make It Yours

Engrave a name and title inside the guide box for a reception or desk name plate.
Cut the faces from coloured acrylic and the ends from wood for a two-tone look.
Widen the foot spread for a low, stable table tent, or narrow it for a tall, slim sign.
